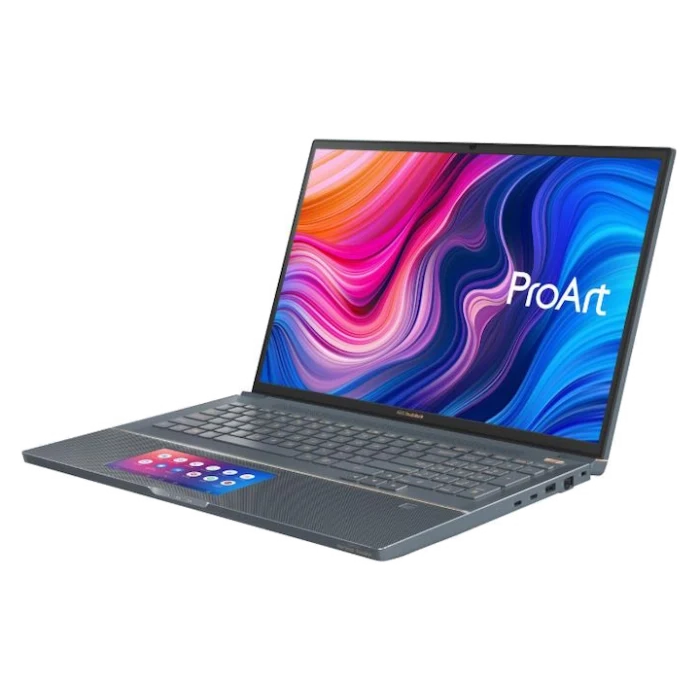

ASUS ProArt StudioBook Pro X 17
- Free, insured shipping
- Certified data erasure
- Paid within 2 business days
- No selling fees, unlike marketplaces
The ASUS ProArt StudioBook Pro X 17 (W730) is a heavy-duty, desktop-replacement mobile workstation engineered for complex creative tasks like architecture, 3D data analysis, and professional video rendering. Replacing the traditional touchpad with the multi-functional ScreenPad 2.0, this machine provides an interactive secondary screen right on the deck. It pairs enterprise-tier Intel Xeon or Core processors with professional NVIDIA Quadro graphics inside a rugged, expansion-friendly chassis. The specifications outlined below represent the configuration options available for this model — use our calculator above to specify your exact build and secure an instant quote.
Core hardware configurations
Processor Options (Intel)
High-performance 9th-Gen Intel Xeon or Core i7 mobile chips
- Intel Xeon E-2276M: 6 Cores / 12 Threads, 2.8 GHz base up to 4.7 GHz Turbo (Supports ECC memory)
- Intel Core i7-9750H: 6 Cores / 12 Threads, 2.6 GHz base up to 4.5 GHz Turbo
Professional Graphics (NVIDIA)
Workstation-class GPUs with ISV-certified drivers
- NVIDIA Quadro RTX 5000: 16GB GDDR6 VRAM — ideal for ray tracing and AI assistance
- NVIDIA Quadro RTX 4000: 8GB GDDR6 VRAM workstation GPU
- NVIDIA Quadro T2000 / T1000: 4GB VRAM entry-to-mid professional options
The NanoEdge display
The StudioBook Pro X 17 features a 4-sided NanoEdge design with exceptionally thin 3.8mm bezels, achieving an impressive 92% screen-to-body ratio in a chassis similar to standard 15-inch laptops.
Display Specifications
- Size & Resolution: 17.0" WUXGA (1920 × 1200) LED-backlit panel
- Aspect Ratio: 16:10 aspect ratio for a taller, more expansive workspace
- Color Accuracy: 97% DCI-P3 color gamut, Delta-E < 1.5, PANTONE Validated
- Finish: Anti-glare matte panel with 178° wide-view technology
Memory & storage
Memory (RAM)
- Up to 128GB DDR4 at 2666 MHz total system memory
- Four user-accessible SO-DIMM slots
- ECC Support: Error-Correcting Code memory option available when configured with the Intel Xeon processor
Storage
- M.2 NVMe Slots: 2× PCIe 3.0 x4 NVMe bays supporting CPU-attached RAID 0/1
- SATA Bay: 1× standard 2.5" SATA HDD/SSD expansion bay for high-capacity mass storage
- Max Capacity: Up to 6TB total storage configurations (e.g., dual 2TB SSDs + 2TB HDD)
Ports & connectivity
This mobile workstation offers a thorough suite of professional ports distributed across both sides of the machine, eliminating the need for external adapters.
- 2× Thunderbolt 3 USB-C (up to 40Gbps, supports DisplayPort 1.4)
- 3× USB 3.2 Gen 2 Type-A (up to 10Gbps)
- 1× HDMI 2.0
- SD 4.0 / UHS-II card reader (up to 312 MB/s)
- 1× RJ-45 Gigabit Ethernet LAN port
- 1× 3.5mm combo audio jack
- 1× DC-in power connection
- 1× Kensington lock slot
Signature features & build
ScreenPad 2.0
An interactive secondary 5.65-inch FHD+ touchscreen built directly into the trackpad. It acts as an app switcher, numeric keypad, or companion macro deck to streamline creative software workflows.
Keyboard & Security
Full-size backlit keyboard with extensive 2.0mm key travel, privacy hotkeys, and an integrated numeric keypad. Security features include a discrete fingerprint reader compatible with Windows Hello.
Audio
Stereo sound certified by Harman Kardon, featuring a smart amplifier and long-travel voice coils for deeper low-frequency audio reproduction.
Build
Premium aluminum chassis available in Star Black or Star Gray, engineered to meet military-grade reliability standards for hardware rigidity and durability.
Battery & Power
Equipped with a high-capacity 95Wh 6-cell lithium-polymer battery and standard 280W high-wattage power adapter to feed its desktop-class internal hardware.
Certification
Independent Software Vendor (ISV) certified to ensure optimized performance, compatibility, and stability with industry-standard applications from Adobe, Autodesk, and SolidWorks.
