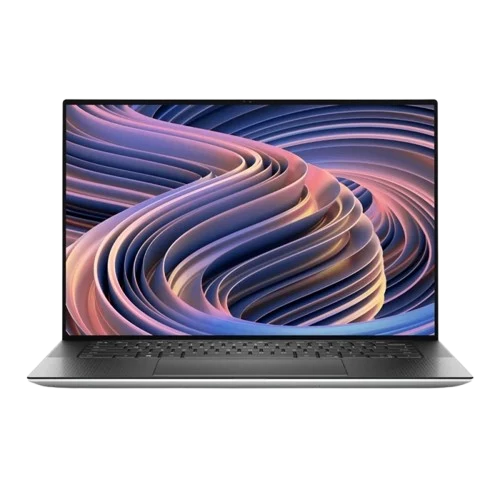

Dell XPS 15 9520

Display:

Processor:

Graphics Card:

Memory:

Storage:

Cosmetic Condition:

Functionality:

Charger Included?

The Dell XPS 15 9520, released in March 2022, is the twelfth-generation refresh of Dell's flagship 15.6-inch creator and premium productivity laptop, sitting at the top of the XPS family alongside its 17-inch sibling, the XPS 17 9720. Externally identical to the 9510 it replaced — same CNC-machined aluminum chassis, same carbon fiber (or optional glass fiber) palm rest, same Corning Gorilla Glass 6 display cover — the 9520 delivers a substantial generational leap where it matters: Intel's new 12th Gen "Alder Lake" H-series processors with hybrid Performance and Efficiency cores, faster DDR5-4800 memory replacing the 9510's DDR4, and an available 3.5K OLED touchscreen. Because Dell sold this model with a wide spectrum of processor, graphics, memory, storage, and display combinations well into 2023, your exact configuration determines its final resale price. Select your components using our tool above to view an instant cash offer for your exact device, or start from our Dell XPS trade-in page.

Core hardware configurations

Processor (CPU)

  • Intel Core i5-12500H — 12 cores (4P + 8E), 16 threads, up to 4.5 GHz boost, 18MB cache
  • Intel Core i7-12700H — 14 cores (6P + 8E), 20 threads, up to 4.7 GHz boost, 24MB cache
  • Intel Core i9-12900HK — 14 cores (6P + 8E), 20 threads, up to 5.0 GHz boost, 24MB cache (unlocked)

Graphics (GPU)

  • Integrated Intel Iris Xe Graphics — base i5 / non-GPU builds only
  • NVIDIA GeForce RTX 3050 — 4GB GDDR6 (40W TGP)
  • NVIDIA GeForce RTX 3050 Ti — 4GB GDDR6 (40W TGP)
  • Ray Tracing, DLSS AI upscaling, and NVIDIA Studio driver certification for creator workflows

Memory (RAM)

  • DDR5-4800 dual-channel memory architecture (upgraded from DDR4-3200 on the 9510)
  • Factory options shipped in 8GB, 16GB, 32GB, or 64GB capacities
  • Two SO-DIMM slots, fully user-upgradable to a maximum of 64GB

Storage

  • M.2 PCIe NVMe Solid State Drive (SSD) high-speed architecture (Gen3 and Gen4 tiers)
  • 256GB / 512GB / 1TB / 2TB / 4TB standard shipping capacities
  • Dual internal M.2 slots (supporting both 2230 and 2280 form factors) — the second slot ships empty on most factory builds for easy user expansion

Display & audio

Display

Immersive 15.6-inch four-sided InfinityEdge display with 92.9% screen-to-body ratio and a taller 16:10 aspect ratio. Available in three panel configurations: standard FHD+ (1920 × 1200) non-touch at 500 nits and 100% sRGB; premium UHD+ (3840 × 2400) touch with anti-reflective coating, 500 nits, and 100% Adobe RGB; or the flagship 3.5K OLED (3456 × 2160) touch panel at 400 nits with 100% DCI-P3 coverage and a 100,000:1 contrast ratio. All panels are covered by Corning Gorilla Glass 6.

Audio

Quad-speaker array (dual tweeters plus dual woofers) tuned by multi-Grammy Award-winning producer Jack Joseph Puig, with MaxxAudio Pro processing and Waves Nx 3D immersive audio support.

Ports & connectivity

The XPS 15 9520 commits fully to USB-C — there are no USB-A ports on the chassis. Dell ships a USB-C to USB-A + HDMI 2.0 dongle in the box to cover legacy peripherals.

Left Side
  • 2× Thunderbolt 4 (USB4) USB Type-C ports (each supports DisplayPort 1.4a, up to 40 Gbps data, and Power Delivery — either port can charge the laptop)
  • 1× Wedge-shaped security-cable slot (Kensington)
Right Side
  • 1× USB 3.2 Gen 2 Type-C port with DisplayPort and Power Delivery (also supports charging the laptop)
  • 1× Full-size SD card reader (SD 7.0, UHS-II)
  • 1× 3.5mm headphone/microphone combo jack

Killer Wi-Fi 6 AX211 Bluetooth 5.2 Fingerprint reader in power button

Battery, build & more

Battery & charging

Two battery options assigned by internal graphics tiering: the base iGPU-only FHD+ configuration ships with a 3-cell (56 Whr) battery, while every discrete-GPU (RTX 3050 / 3050 Ti) or high-resolution display configuration steps up to a larger 6-cell (86 Whr) battery. Both configurations use the same 130W USB-C power adapter.

Camera & mic

Integrated widescreen HD (720p) webcam with Windows Hello facial recognition and dual-array digital microphones with noise cancellation.

Keyboard & touchpad

Full-size backlit chiclet keyboard (no numeric keypad — this is a productivity design, not a gaming chassis) with a fingerprint reader built into the power button. Large edge-to-edge glass Precision touchpad.

Cooling

Dual-fan, dual-heatpipe vapor-chamber cooling system with intake through the bottom cover and exhaust through the rear hinge exhaust vents. Fan behavior is controlled through MyDell and Dell Power Manager profiles.

Weight

≈ 1.84 kg (4.06 lb) for FHD+ non-touch configurations, rising to ≈ 1.96 kg (4.31 lb) for OLED and UHD+ touch configurations.

Dimensions

344.7 × 230.1 × 18 mm (13.57" × 9.06" × 0.71").

Frequently asked questions

01 How do I confirm my laptop is the Dell XPS 15 9520 and not another XPS 15 generation?
This is important because four different XPS 15 generations share the exact same chassis and the same regulatory model number "P91F" — the visual difference is essentially nothing. Flip your laptop closed and look at the bottom aluminum cover for the fine-print regulatory badge. The 9520 carries Regulatory Type P91F003, which distinguishes it from the 9500 (P91F001, 2020), the 9510 (P91F002, 2021), and the 9530 (P91F004, 2023). The fastest secondary check is the processor: open the Start menu, type "About your PC," and read the CPU line. A 12th Gen Intel Core i5, i7, or i9 (model number starts with "12") confirms the 9520. You can also enter your 7-character Service Tag at dell.com/support to pull up the exact factory configuration. For pictures showing exactly where these markings sit, see our guide to finding your Dell laptop's model number.
02 Can I trade in an XPS 15 9520 with a cracked screen, worn battery, or system issues?
Yes, you can. We purchase XPS 15 hardware in all operational states. Whether your laptop runs like new, exhibits fan noise, has a battery that no longer holds a charge, shows keyboard wear, has a cracked screen or dented lid, or won't power on at all, adjusting your condition grading choices above will lock in a firm cash value. Premium XPS models retain meaningful salvage value even when damaged because their processors, memory, and NVMe storage often remain fully functional.
03 Should I pull my NVMe SSD or wipe it prior to boxing?
We highly encourage saving your local personal files or projects to an external hard drive or cloud workspace and logging fully out of your active Windows, Microsoft, and Dell accounts before packaging. You do not need to unscrew or pull out the M.2 solid-state storage cards yourself — the XPS 15 uses tiny Torx screws and pulling drives without proper tooling frequently damages the chassis. Our technical team handles certified, multi-pass software data sanitation routines on all incoming drives. Review our detailed protocols on the data erasure protocols information portal.
04 Which internal configurations raise my XPS 15 9520 trade-in value the most?
The display panel is unexpectedly the largest single factor in a used XPS 15's value — the optional 3.5K OLED touchscreen and the UHD+ 4K panel command a meaningful premium over the base FHD+ non-touch panel, because color-accurate creator workflows depend on that upgrade. After the display, the processor tier (Core i9-12900HK > i7-12700H > i5-12500H), the presence of a discrete NVIDIA RTX 3050 Ti (rather than iGPU-only or plain RTX 3050), a full 32GB or 64GB DDR5 kit, and a 1TB or 2TB NVMe SSD all elevate your final check amount. When you fill out the quote form, specify the display panel type carefully — misreporting an OLED as an FHD will substantially lower your offer. For a deeper look at what buyers pay for Dell laptops in the current secondary market, see our guide to selling your Dell laptop for cash.
