MSI Katana GF76

Processor:

Graphics Card:

Cosmetic Condition:

Functionality:

Charger Included?

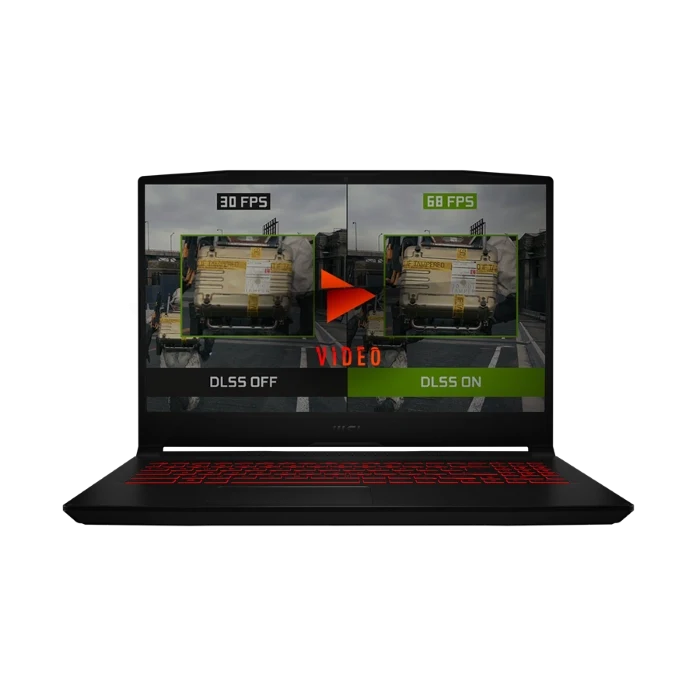

The MSI Katana GF76 is MSI's 17.3-inch budget-to-midrange gaming laptop, sold across two hardware generations: the 11U series (Katana GF76 11SC / 11UC / 11UD / 11UE / 11UG), announced in May 2021 and on US shelves from mid-2021 through early 2022, and the 12U series (Katana GF76 12UC / 12UD / 12UE / 12UG / 12UGS), launched in early 2022 and sold into 2023 before MSI retired the "GF76" name in favor of "Katana 17." Both generations share the same black, samurai-inspired chassis designed with Japanese illustrator Tsuyoshi Nagano, a full number pad, a 17.3-inch 144Hz FHD panel, and Cooler Boost 5 dual-fan cooling — but they differ underneath in CPU generation, memory type, SSD interface, and power brick wattage, and those differences directly change what your unit is worth. Gadget Salvation has bought used gaming laptops straight from their owners since 2008, so you can trade this machine in for cash instead of listing it yourself. Pick your exact configuration with the tool above to see an instant cash offer, and if you are still sorting out where the GF76 sat in MSI's lineup, our guide to MSI's gaming laptop series breaks the families apart.

Is this your laptop? Identify your Katana GF76

Flip the laptop over. MSI prints a white label on the bottom cover with two lines that matter: the model name (for example "Katana GF76 12UE") and a board code beginning with MS-17L. Match both against the cards below.

✅ Katana GF76 11U series (2021)

  • Bottom label reads Katana GF76 11SC, 11UC, 11UD, 11UE or 11UG
  • Board code MS-17L1 (11UE / 11UG) or MS-17L2 (11SC / 11UC / 11UD)
  • Processor string contains 11800H or 11400H (11th Gen Intel, Tiger Lake-H)
  • Power brick is labeled 150W or 180W
  • Keyboard backlight is red only — no color options
  • Shipped with Windows 10 Home, with a free Windows 11 upgrade offer

✅ Katana GF76 12U series (2022)

  • Bottom label reads Katana GF76 12UC, 12UD, 12UE, 12UG or 12UGS, sometimes with extra letters (12UEOK, 12UGSO, and so on)
  • Board code MS-17L3 (12UE / 12UG / 12UGS) or MS-17L4 (12UC / 12UD)
  • Processor string contains 12700H (12th Gen Intel, Alder Lake-H)
  • Power brick is labeled 180W or 240W
  • Keyboard backlight is red only or color-changing RGB, depending on the suffix
  • Shipped with Windows 11 Home or Windows 11 Pro
  • The MSI lettering under the screen is gray; on the 2021 models it was black-on-black

❌ This is a different laptop

  • Katana GF66 — same design, 15.6-inch screen, board code MS-1581 to MS-1584
  • Katana 17 (B12V / B13V) — the GF76's replacement, board code MS-17L5, RTX 40-series graphics
  • Sword 17 — white chassis with a blue-lit keyboard instead of black with red
  • Pulse GL76 — 17.3-inch sibling from the same years that shares some internal boards; the bottom label says "GL76," not "GF76"
  • GF75 Thin / GF76 Thin — earlier 17-inch GF laptops with GTX 16-series graphics and a slimmer lid

Not sure where to look? Press the Windows key, type msinfo32, and press Enter. The System Model line shows your marketing name (such as "Katana GF76 12UE") and the BaseBoard Product line shows the MS-17L board code. To read your processor instead, open Settings → System → About and look at the Processor line. Our guide to finding an MSI model number and our guide to finding your processor type walk through both with screenshots.

Every Katana GF76 model number

MSI uses a platform code (like 12UEOK) plus a retail suffix (like -026). The platform code tells you the graphics chip, memory type, and keyboard; the retail suffix tells you the RAM and storage the store sold it with.

11U series platform codes — 2021, 11th Gen Intel

  • Katana GF76 11SC — GeForce GTX 1650 4GB (sold outside the US; you will rarely see one here)
  • Katana GF76 11UC / 11UCK / 11UCX — GeForce RTX 3050 4GB
  • Katana GF76 11UD / 11UDK — GeForce RTX 3050 Ti 4GB
  • Katana GF76 11UE / 11UEK — GeForce RTX 3060 6GB
  • Katana GF76 11UG / 11UGK — GeForce RTX 3070 8GB

12U series platform codes — 2022, 12th Gen Intel

  • Katana GF76 12SC — GeForce GTX 1650 4GB (sold outside the US)
  • Katana GF76 12UC / 12UCK / 12UCO / 12UCOK — GeForce RTX 3050 4GB
  • Katana GF76 12UD / 12UDK / 12UDO / 12UDOK — GeForce RTX 3050 Ti 4GB
  • Katana GF76 12UE / 12UEK / 12UEO / 12UEOK — GeForce RTX 3060 6GB
  • Katana GF76 12UG / 12UGK / 12UGO / 12UGOK — GeForce RTX 3070 8GB
  • Katana GF76 12UGS / 12UGSK / 12UGSO / 12UGSOK — GeForce RTX 3070 Ti 8GB at 105W
  • Katana GF76 12UGSZOK — GeForce RTX 3070 Ti 8GB at 140W in a thicker 28.2mm chassis (regional variant)

How to read the trailing letters on a 12U model

  • No extra letter (12UE) — DDR4-3200 memory, red-only keyboard backlight
  • O (12UEO) — DDR5-4800 memory instead of DDR4
  • K (12UEK) — color-changing RGB keyboard backlight instead of red-only
  • OK (12UEOK) — both: DDR5-4800 memory and the RGB keyboard
  • Z (12UGSZOK) — raised graphics power limit and a thicker chassis

These letter rules apply to the 12U series only. Every 11U model used DDR4-3200 and a red-only keyboard, so an 11U suffix letter is a regional marker rather than a spec change.

Retail suffixes confirmed at US stores

  • 11UD-001 / 11UD-001US — Core i7-11800H, RTX 3050 Ti, 16GB, 512GB (Walmart)
  • 12UE-026 — Core i7-12700H, RTX 3060, 16GB DDR4, 512GB (Amazon, Newegg, Walmart)
  • 12UE-037 — Core i7-12700H, RTX 3060 configuration sold through business resellers
  • 12UGS-035 — Core i7-12700H, RTX 3070 Ti, 16GB, 1TB (Newegg)

Suffixes such as 11UD-050, 11UE-036, 11UE-005NL, and 11SC-847IN were European and Asian releases. If your label carries one of those, the machine was an import — we still buy it, and the platform code before the dash is what determines your offer.

Core hardware configurations

Processor (CPU) — 11U series

  • Intel Core i7-11800H — 8 cores, 16 threads, 2.3GHz base, up to 4.6GHz boost, 24MB cache
  • Intel Core i5-11400H — 6 cores, 12 threads, up to 4.5GHz boost, 12MB cache (11SC models, non-US markets)
  • Intel HM570 chipset
  • Nearly every US-market 11U unit shipped with the i7-11800H

Processor (CPU) — 12U series

  • Intel Core i7-12700H — 14 cores (6 performance + 8 efficient), 20 threads, up to 4.7GHz boost, 24MB cache
  • Every US 12U configuration used the i7-12700H — MSI did not offer a Core i5 in this generation here
  • This is the single fastest thing about the 12U refresh and the main reason it outsells the 11U on the used market

Graphics (GPU) — 11U series

  • NVIDIA GeForce GTX 1650 — 4GB GDDR6 (11SC, non-US)
  • NVIDIA GeForce RTX 3050 — 4GB GDDR6, 128-bit
  • NVIDIA GeForce RTX 3050 Ti — 4GB GDDR6
  • NVIDIA GeForce RTX 3060 — 6GB GDDR6, 85W maximum graphics power with Dynamic Boost
  • NVIDIA GeForce RTX 3070 — 8GB GDDR6, 85W maximum graphics power with Dynamic Boost

Graphics (GPU) — 12U series

  • NVIDIA GeForce GTX 1650 — 4GB GDDR6 (12SC, non-US)
  • NVIDIA GeForce RTX 3050 — 4GB GDDR6, 128-bit
  • NVIDIA GeForce RTX 3050 Ti — 4GB GDDR6
  • NVIDIA GeForce RTX 3060 — 6GB GDDR6, 105W maximum graphics power
  • NVIDIA GeForce RTX 3070 — 8GB GDDR6, 105W maximum graphics power
  • NVIDIA GeForce RTX 3070 Ti — 8GB GDDR6, 105W (140W on the 12UGSZOK variant)
  • The 12U series runs its RTX 3060 and 3070 at a higher power ceiling than the 11U series does, which is why it needs a bigger adapter

Memory (RAM)

  • 11U series: DDR4-3200, two SO-DIMM slots, 64GB maximum
  • 12U series: DDR4-3200 on base codes, or DDR5-4800 on "O" codes — two slots, 64GB maximum either way
  • Both slots are socketed, not soldered. If a previous owner or a reseller upgraded the memory, that upgrade is yours to keep and it raises your offer
  • Factory capacities were commonly 8GB, 16GB, or 32GB; upgraded units at 64GB do exist
  • DDR4 and DDR5 sticks are not interchangeable — a 12UEO will not accept modules from a 12UE

Storage

  • 11U series: M.2 NVMe PCIe Gen3
  • 12U series: M.2 NVMe PCIe Gen4
  • Two M.2 slots on the RTX 3060, 3070, and 3070 Ti models (11UE, 11UG, 12UE, 12UG, 12UGS)
  • One M.2 slot only on the RTX 3050 and 3050 Ti models (11UC, 11UD, 12UC, 12UD)
  • Factory capacities were commonly 256GB, 512GB, or 1TB
  • No 2.5-inch drive bay, and no mechanical hard drive was ever offered

Display & audio

Display

One panel across the entire Katana GF76 line: a 17.3-inch thin-bezel FHD (1920 × 1080) IPS-level screen at a 144Hz refresh rate, non-touch, with roughly 45% NTSC color coverage. There was no QHD option, no 240Hz or 300Hz option, no OLED option, and no touchscreen option — so if your unit is a Katana GF76, its screen is not a variable that changes your quote. The modest color coverage is the panel's known weak point and was a common criticism in reviews at launch.

Audio

Two 2W stereo speakers with a single combination microphone-in / headphone-out jack, tuned by Nahimic audio software. There is no subwoofer and no separate microphone jack. Audio output is unremarkable for a 17-inch machine and does not affect trade-in value.

Ports & connectivity

Both generations carry an identical port set. MSI distributes these across the left flank and rear edge, and port positions are the same on the 11U and 12U — so counting ports will not tell you which generation you have. Use the bottom label or the processor string instead.

Video, network & power
  • 1× HDMI, rated for 4K at 60Hz (MSI's current spec sheets call this HDMI 2.1; documentation from launch listed it as HDMI 2.0 — either way, 4K/60 is the ceiling)
  • 1× RJ45 Gigabit Ethernet (standard Gigabit, not 2.5G)
  • 1× barrel-style DC-in jack for the power adapter
USB & audio
  • 1× USB Type-C 3.2 Gen 1 (data only — MSI does not list DisplayPort output or Power Delivery charging on this port. It is not Thunderbolt)
  • 2× USB Type-A 3.2 Gen 1
  • 1× USB Type-A 2.0 (slower legacy port — fine for a mouse, poor for an external drive)
  • 1× 3.5mm microphone-in / headphone-out combo jack

Features this laptop does not have, so you do not need to look for them: no SD or microSD card reader, no Thunderbolt 3 or Thunderbolt 4, no USB-C charging, no mini DisplayPort, no fingerprint reader, no IR camera or Windows Hello face sign-in, no touchscreen, no optical drive, and no MUX switch or GPU-switching hardware. Missing any of these is normal and does not lower your offer.

Intel Wi-Fi 6 AX201 Bluetooth 5.2 Gigabit Ethernet No Wi-Fi 6E

Battery, build & more

Battery

A 3-cell, 53.5Whr lithium-polymer battery in virtually every Katana GF76 ever sold. The 11UG was the one exception, offered in some markets with a 4-cell 90Whr pack. A small battery in a 17-inch gaming chassis means short unplugged runtime was normal from day one — a battery that no longer holds a charge is expected wear on these, not a disqualifier.

Power adapter — a fast generation test

Read the wattage printed on your brick. 150W means an 11UC or 11UD. 180W means an 11UE, 11UG, 12UC, or 12UD. 240W means a 12UE, 12UG, or 12UGS. Combine that with the processor number and you have your exact model. Including the original adapter with your shipment matters — a missing charger reduces what we can offer.

Keyboard & number pad

Full-size chiclet keyboard with a dedicated numeric keypad and anti-ghosting across 99 keys. The 11U series and the base 12U codes use a single-color red backlight. The 12U codes ending in K use a color-changing RGB backlight. Neither is per-key addressable lighting — that belongs to MSI's higher Raider and Vector lines.

Camera & microphone

A 720p HD webcam at 30fps with a built-in microphone array. There is no 1080p option, no privacy shutter, and no infrared sensor for facial recognition sign-in.

Cooling

MSI Cooler Boost 5: two fans feeding a shared heat-pipe array, with the higher graphics tiers getting more pipes than the RTX 3050 models. Fan noise under load is loud by design on this chassis. Dust-clogged fans and a whining bearing are the most common complaints we see on incoming units, and neither one blocks a trade-in.

Dimensions & weight

398 × 273 × 25.2 mm (15.67" × 10.75" × 0.99"), weighing 2.6 kg (about 5.7 lb) per MSI's own figures; some review outlets measured closer to 5.1 lb. The 12UGSZOK regional variant is thicker at 28.2 mm. Finish is matte black throughout, with gray MSI lettering below the screen on the 2022 models.

Frequently asked questions

01 How do I find out exactly which Katana GF76 I own?
Close the lid and turn the laptop upside down. On the bottom cover you will find a white sticker printed with your model name — something like "Katana GF76 11UE" or "Katana GF76 12UGSOK" — along with a serial number and a board code starting with MS-17L. That model name is all we need. If the sticker has worn away, press the Windows key, type msinfo32, and press Enter: the System Model line shows the same name. Two backup checks if you are still unsure: open Settings → System → About and read the Processor line (an 11800H or 11400H means the 2021 generation, a 12700H means 2022), then read the wattage on your power brick (150W, 180W, or 240W). Our step-by-step guide to finding an MSI model number shows each of these with pictures, and you can always send us a photo of the sticker instead of typing anything.
02 Which laptops get mistaken for a Katana GF76, and how do I rule them out?
MSI built several near-identical machines in these two years, and picking the wrong one is the most common reason a quote has to be revised after a laptop arrives. Here is a test for each mix-up.

Katana GF66 — the same chassis design in 15.6 inches. Measure the screen diagonally, or check the board code: the GF66 uses MS-1581 through MS-1584, the GF76 uses MS-17L1 through MS-17L4.

Katana 17 (B12V or B13V) — the model that replaced the GF76 in late 2022. The sticker says "Katana 17" with no "GF76," the board code is MS-17L5, and the graphics chip is an RTX 40-series card. Any RTX 4050, 4060, or 4070 rules out the GF76 entirely, because the GF76 never shipped with 40-series graphics.

Pulse GL76 — a 17.3-inch cousin from the same years that shares internal boards with the GF76, so a repair-parts search will not separate them. The bottom label is the test: it reads "GL76," not "GF76."

Sword 17 — mechanically related but sold in a white chassis with a blue-lit keyboard. If your laptop is black with a red or RGB keyboard, it is not a Sword.

GF75 Thin — MSI's earlier 17-inch GF laptop. It carries GTX 1650 or GTX 1660 Ti graphics and a visibly slimmer lid, and its label says "GF75," not "GF76."

11U versus 12U — the mix-up within the family itself, and the one that changes your offer most. The processor number settles it: 11800H or 11400H is 2021, 12700H is 2022.
03 Will you still buy mine if it is beat up, upgraded, or not working right?
Yes. We buy Katana GF76 laptops in every condition, and these 17-inch machines almost always arrive with something wrong. The usual list: a 53.5Whr battery that no longer holds a charge, fans that grind or whine after years of dust, a cracked screen, worn hinges from a heavy lid, a keyboard with the WASD legends rubbed off, or thermal throttling from dried-out paste. Choose the condition options above that match honestly and the offer you see is the offer we honor.

Upgrades work in your favor. Both memory slots are socketed and the RTX 3060, 3070, and 3070 Ti models have a second M.2 slot, so plenty of these units left the factory at 16GB and 512GB and now hold 32GB or 64GB with two drives installed. Report what is actually in the machine right now, not what the box said, and you will be paid for the upgrade. If you would rather pull your extra RAM stick or second SSD before shipping, that is fine too — just quote the configuration you are sending. Our step-by-step guide to selling a gaming laptop covers cleaning and prep that takes ten minutes and can move your unit up a condition grade.
04 What drives the trade-in value of a Katana GF76 up or down?
Graphics chip first, generation second. An RTX 3070 Ti or RTX 3070 unit is worth substantially more than an RTX 3050 or 3050 Ti unit, and within the same graphics tier a 12U model with the Core i7-12700H beats an 11U model with the i7-11800H. After that: total RAM (a socketed upgrade to 32GB or 64GB pays off), total storage and whether the second M.2 slot is filled, and whether you still have the original power adapter — a missing 150W, 180W, or 240W brick is a real deduction on a laptop that cannot charge over USB-C. Cosmetic condition and a healthy battery round it out.

Many people don't realize that a working online trade-in service for used gaming laptops exists at all. Most owners assume the only options are a marketplace listing with strangers, a manufacturer program that pays in store credit, or a drawer where the laptop sits until it is worthless. Gadget Salvation has been a cash-for-electronics buyback service since 2008: you answer a few questions about your GF76, you get an instant offer, we send you a free prepaid and insured shipping label, and we pay you in real money — not credit, not gift cards — within about two business days of the laptop reaching us. There is no listing to write, no buyer to negotiate with, and no fee taken out of the total. You can also browse every MSI laptop we buy to see how the GF76 compares with other models you may have sitting around, and our article on the factors that determine laptop resale value explains why gaming machines hold value better than ordinary notebooks — and why waiting costs you money.
05 How do I erase my data, and how do I get paid?
Back up anything you want to keep first — game saves, screenshots, documents, your Steam and Battle.net library lists — to an external drive or cloud storage. Then sign out of your Microsoft account and your game launchers, and run a factory reset: Settings → System → Recovery → Reset this PC → Remove everything. If your GF76 will not boot far enough to do that, send it as-is and tell us. You do not need to unscrew the bottom cover or remove the M.2 drives yourself — our technicians run certified data sanitization on every drive that comes through, whether or not you reset it. Full details are on our data erasure protocols page.

Pack the laptop with the original power adapter, print the free prepaid and insured label we email you, and drop it off — our shipping instructions cover boxing a 17-inch machine safely. Once it arrives and passes functional testing, payment is approved within roughly two business days. Choose PayPal, Venmo, Zelle, or CashApp for electronic payment, or a paper check mailed to your address.
